Tailscale Exit Node on Mac Mini


tailscale networking mac
I want to set up an exit node on my Mac Mini using Tailscale. That way I can watch movies from anywhere and print stuff without being at home.

Goals and Constraints

Goals:

  • Enable family members to VPN into my home network so that traffic appears to be coming my home location.
  • Enable family members print to our home printer, even though that printer does not—and cannot—have Tailscale installed.

Contraints:

  1. I do not want the standard user-level setup with the Tailscale GUI app setup because if the Mac power cycles, Tailscale exit node should work without a user having to log in.
  2. I want to limit access to devices on our home network to the subset that the exit node is on.

One aspect of constraint #2 is that I need to figure out the CIDR notation that we can pass to Tailscale such that the exit node is configured to let other authorized Tailscale clients access non-Tailscale devices on the same subset as the exit node. For example, the CIDR notation represented by 255.255.255.0 (hex 0xffffff00) is /24 means. That means “the first 24 bits are the network part”:

1
2
3
4
5

# 0xffffff00 in binary:
11111111.11111111.11111111.00000000
└──────── 24 ones ───────┘└8 zeros┘
              ↓
             /24

That’s part of what I’ll be doing below

Steps

Here are the steps I followed:

These are instructions for MacOS. The IP forwarding in particular is OS-specific.

  1. Install Tailscale on my Mac Mini by running the following command in the terminal:

    1

    brew install tailscale

  2. Set up Tailscale as a system service by running the following command. Using sudo... is necessary precisely because it allows the service to run without a user having to log in.

    1

    sudo brew services start tailscale

    Now you’d have a tailscaled running as a system service.

  3. Set OS-level IP forwarding. This is something that Tailscale cannot work around: OS-level IP forwarding is required for Tailscale to function as an exit node. Sticking it in /etc/sysctl.conf makes this a persistent change.

    1
2

    echo 'net.inet.ip.forwarding=1' | sudo tee -a /etc/sysctl.conf # IPv4
echo 'net.inet6.ip6.forwarding=1' | sudo tee -a /etc/sysctl.conf # IPv6

    If you want to back this out, just set the values =0 in /etc/sysctl.conf and reboot.

  4. Make the sysctl.conf changes one-time for the current session because I’m too lazy to reboot. You could skip that and just reboot your Mac at this stage and it’ll pick up the changes we made in the previous step.

    1
2

    sudo sysctl -w net.inet.ip.forwarding=1 # IPv4
sudo sysctl -w net.inet6.ip6.forwarding=1 # IPv6

  5. Get the netmask of the exit node’s IP address.

    1
2
3
4
5

    # Get the
$ ifconfig | grep "inet " | grep -v 127.0.0.1

inet 192.168.0.9 netmask 0xffffff00 broadcast 192.168.0.255
inet 100.81.154.9 --> 100.81.154.9 netmask 0xffffffff5.

    The first IP address 192.168.0.9 is the one you want since the second one is a Tailscale IP address. It includes the hex (0x) version of the netmask, which is ffffff00. If you know hex, that’s 255.255.255.0, or 8 bits for each number. In other words, the first three triplets of the IP address represent the subnet mask: $8\times3=24$ Here’s a little bc command that shows the math:

    1
2
3

    # Convert hex FFFFFF00 to binary and count the 1s
$ echo "obase=2; ibase=16; FFFFFF00" | bc | tr -cd '1' | wc -c
Output: 24

    Combining the subnet mask and the IP address of the Mac that we want to be the exit node, we have a subnet mask of 192.168.0.0/24.

  6. Start Tailscale as an exit node, while also advertising the subnet:

    The first time you do this (which is now, right?!), you’ll be prompted to enter your Tailscale account credentials and do a dance in a web browser.

    1

    sudo tailscale up --advertise-routes=192.168.0.0/24 --advertise-exit-node

  7. Enable the Exit Node on the Tailscale dashboard at https://login.tailscale.com/admin/machines.

    1. You will see the Exit Node label next to your machine name in the list with a little INFO icon next to it.
    2. Use the three dot (…) menu for that machine and choose Edit Route Settings.

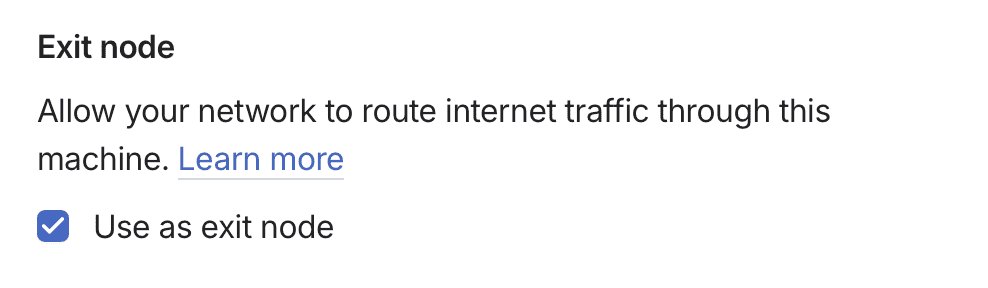

    3. Click the checkbox for Use as exit node and give it a few seconds to propagate.

  8. Enable the subnet sharing. In the Tailscale admin dashboard, you Edit Route Settings for the exit node and check the box next to the subnet mask.

With that, you can open Tailscale on another device on your tailnet, like a phone, and use your Mac as an exit node.
